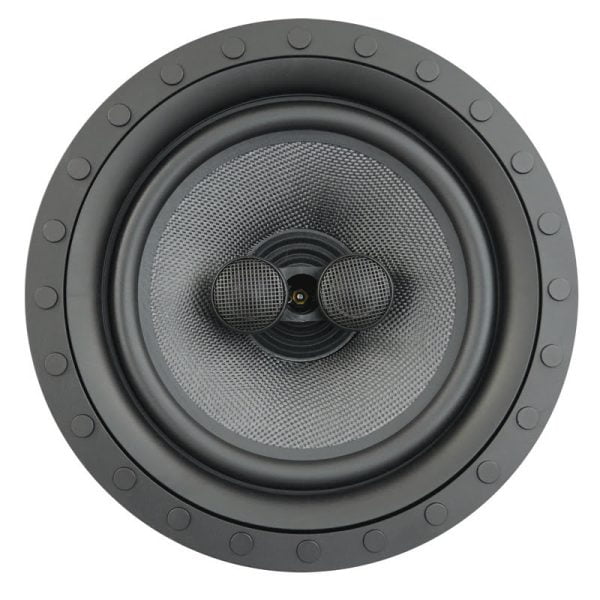

ARCHITECTURAL 8 INCH SINGLE STEREO TWIN TWEETER STEREO IN-CEILING / EACH

Descripción

ARCHT-8-SSTT ARCHITECTURAL 8 INCH SINGLE STEREO TWIN TWEETER STEREO IN-CEILING / EACH

• KEY FEATURES
  • Ideal for spaces not requiring defined Left Right Stereo Soundstage
  • Twin 3/4-inch Teteron® Tweeter Diaphragm with Low Resonance and Internal Damping
  • Reliable Installation with Proven Dog Clamp Design
  • Advanced Crossover Design and High-Quality Components
  • Metal Perforated Magnetic Flush, Paintable Grilles
  • Square Grille Option
  • Anti-Diffraction Ring
• SPECS

  Performance
  — 8-inch 2-way round frameless, Single Point Stereo
  — Frequency response 40Hz – 20kHz +/- 3dB
  — Power handling 60 watts nominal 120 max.
  — Sensitivity 89dB @ 2.83V / 1 meter
  — Impedance 8 Ohm Nominal
  Dimensions
  — Overall dimension: 9-7/8 inch diameter (250 mm)
  — Cut-Out dimension: 8-5/8 inch diameter x 3-7/8 inch deep  (219 mm x 98 mm)

• DOCUMENTS
  Artison In Ceiling [ARCHT-x, ARCHT-x-SSTT] Installation Guide

  View
