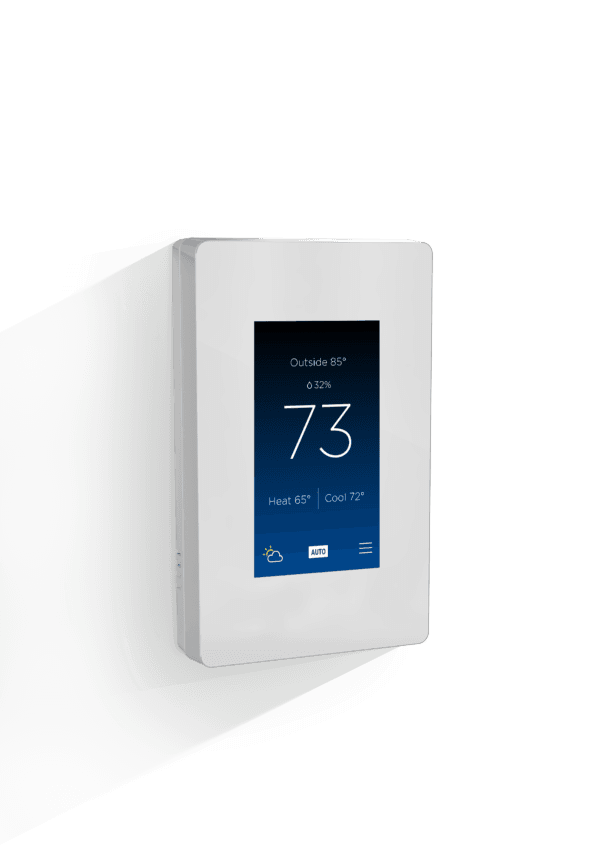

MULTISTAT SMART THERMOSTAT – WHITE
Registrate para ver precios
The updated Savant Multistat Smart Thermostat provides an upgraded processor and Wi-Fi antenna, improved touch screen, and now includes a Bluetooth Temperature sensor to make climate installs even easier, while keeping the same great features of the previous thermostat for control of Heating, Ventilation and Air Condition (HVAC) systems. On-screen configuration plus the optional web config interface for advanced users and settings maintain a great balance between ease of setup and ultimate flexibility. This product works with the Savant Pro App and from its touch interface which additionally provides a quick look at local weather, and access to global Scenes.
KEY FEATURES
- Color: White
- Wi-Fi enabled Thermostat, 802.11 B/G/N (2.4 GHz / 5 GHz)
- Supports standard or heat pump HVAC systems
- Can be used in Fahrenheit or Celsius mode
- Optional indoor or outdoor remote temperature sensors
- Integrates easily with the HVAC Scheduler on the Savant Pro App
- Includes One CLI-THBT1-00
- Savant Multistat Smart Thermostat [CLI-W220x] Quick Start Guide View
- GE Wireless Bluetooth Temperature Sensor Quick Reference Guide View
Basic warranty period is two (2) years excluding misuse defined as abuse, accidental damage, modifications, improper wiring, improper repair, incorrect repair, and operation outside specified operating temperatures and humidity. For further warranty information on this product please refer to the Savant New Product Limited Warranty document.
Learn more
- Temperature: 32° to 104° F (0° to 40° C)
- Humidity: 10% to 90% Relative Humidity (non-condensing)
- Height: 7 in
- Width: 5 in
- Depth: 2 in
- Weight (Shipping): 1.0 lb (0.45 kg)
- Input Power: 24V AC (19V AC - 28V AC)
- Connect to terminals 24C and 24RH on terminal block on back panel. Requires both R and C from the HVAC system.
- Current draw: 70 mA (250mA max)
- Power: #18 AWG
- HVAC: #18 AWG Thermostat Wire (solid)
- Remote Sensors: #24 AWG (Cat 5) 500 feet (152 m) maximum
- Safety and Emissions: FCC Part 15
- RoHS Compliant
- Wireless: Wi-Fi (802.11 b/g/n)
- Security: WPA1™, WPA2™, WPA1™ + WPA2™
- Two 11-position screw down connectors mounted to inside of back panel. Each terminal is marked.
- Savant OS da Vinci 10.6
Información adicional
| Peso | 0.45 kg |
|---|---|
| Dimensiones | 18 × 13 × 5 cm |
