WALL-SMART FOR SAVANT ASCEND WFB-4G – SOLID SURFACE
Registrate para ver precios

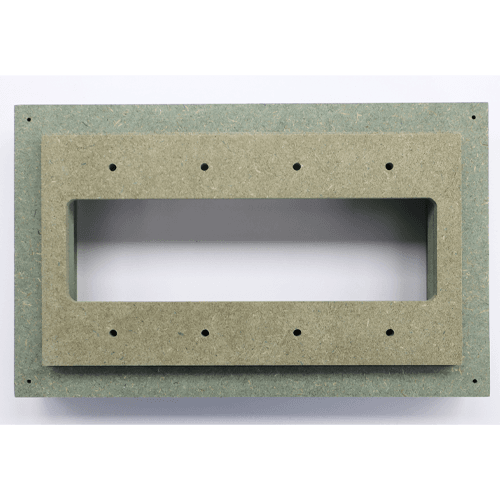

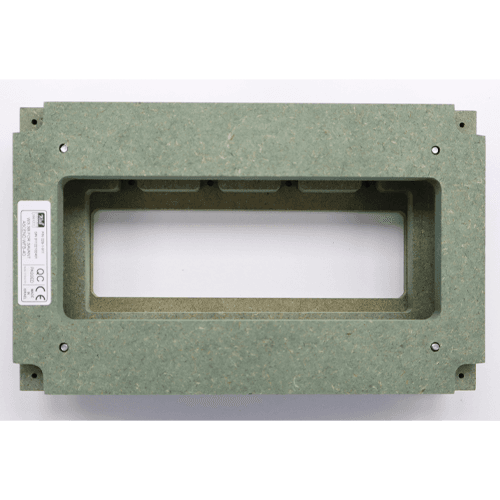

The Wall-Smart for Savant Ascend WFB 4G – Solid Surface is an adapter for in-wall flush installation of a Savant Ascend 4G keypad in solid board walls. It firmly mounts the device while allowing easy access, insertion and removal.
- Flush with the wall
- Allows easy maintenance access
- Includes depth calibration mechanism and a spacer allowing installation in wide range of board thicknesses:
- With spacer: 6.62mm ~ 21mm (0.26in ~ 0.83in) thick
- Without spacer: 18.22mm ~ 32.6mm (0.72in ~ 1.28in) thick
- Designed for the use with Savant Ascend WFB 4G keypad (Keypad not included)
- Use spacer as routing template
Wall-Smart has a 24-month warranty term. Full warranty details are available on the Wall-Smart website.
Return Information - Non-Defective
Wall-Smart accepts returns within 30 days of delivery date with a 20% restock fee. Only unopened (factory-sealed) products are accepted back. Wall-Smart does not accept “End of Life” products or custom solutions returns. Return requests can be started in Savant's Customer Community using the Live Chat or Case features.
Return Information - Defective
Wall-Smart will provide a replacement for a defective product, not due to wrong use within the 2-year warranty period. There are no out of warranty returns or allowances. For assistance with your defective unit, start a Case in Savant's Customer Community.
Wall-Smart Contact Information
Phone: 201-205-2056
Email: support@wall-smart.com
Read more
- Dimensions (WxHxD): 246.4mm (9.7in) x 152.2mm (5.99in) x 41.3mm (1.62in)
- Power Supply: None (manual adapter)
- Weight: 0.56kg (1.23lbs)
- Material: Moisture resistant MDF (compliant with TSCA Title VI)
Información adicional
| Peso | 0.56 kg |
|---|---|
| Dimensiones | 24.64 × 4.13 × 15.22 cm |
