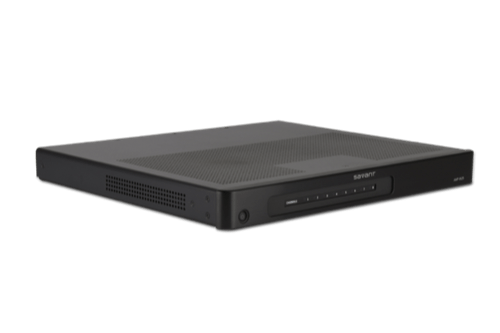

8-CHANNEL DIGITAL AUDIO AMPLIFIER
AMP-8125-00
Registrate para ver precios
Ideal for speakers that demand more power. This digital amplifier can maximize the audio experience in multi-room distributed audio applications—offering eight channels of 125-watt amplification at 8 ohms in a one-rack space metal enclosure.
- Removable rack ears included
- Front panel LEDs indicate fault status
- Quiet, convection-cooled fanless design
- Supports Audio Sense, Voltage Trigger, and Manual modes
- Standby Mode power consumption under 0.5W
- 8-Channel Digital Audio Amplifier [AMP-8125] Quick Reference Guide View
- Savant Multi-Room Amplifier [AMP-8125] Deployment View
- Amplifiers [AMP-8125] Training Video View
- 8-Channel Digital Audio Amplifier [AMP-8125] Technical Specifications View
Basic warranty period is two (2) years excluding misuse defined as abuse, accidental damage, modifications, improper wiring, improper repair, incorrect repair, and operation outside specified operating temperatures and humidity. For further warranty information on this product please refer to the Savant New Product Limited Warranty document.
Learn more
SPECS
- Temperature: 32° to 95° F (0° to 35° C)
- Humidity: 10% to 80% Relative Humidity (non-condensing)
- Cooling: 34 cubic feet per minute (CFM) recommended
- BTUs: 650 BTUs per hour
- Height: 1.70 in/4.50 cm
- Width: 17.30 in/43.94 cm
- Depth: 14.9 in/37.88 cm
- Weight: 9.2 lb/4.2 kg
- Rack Space: 1U
- Input Power: 100-240V AC, 50/60 Hz
- Nominal Power: 190 watts
- Output Power: 125W RMS/channel@8 ohms from 20Hz - 20kHz (all channels driven)
- Frequency Response: 20Hz - 20kHz +0dB/-1.5dB
- Total Harmonic Distortion (THD): 105dB ref: full power (a-weighted)
- Crosstalk: < -70dB @ 1kHz
- Input Sensitivity: 1.12 volts for 125 watts out in 8 ohms
- Gain: 29dB
- Input Impedance: 100K ohms (typical)
- 12V DC Trigger Signal: Current = 0.12 mA
- Safety and Emissions: FCC Part 15 | CE | CAN/CSA | C-Tick
- RoHS Compliant
Información adicional
| Peso | 0.007 kg |
|---|---|
| Dimensiones | 43.94 × 37.88 × 4.5 cm |
| Marca |
