QO DUAL 24V CONTROL RELAY PON
GPM-QP2PWL-20
Registrate para ver precios

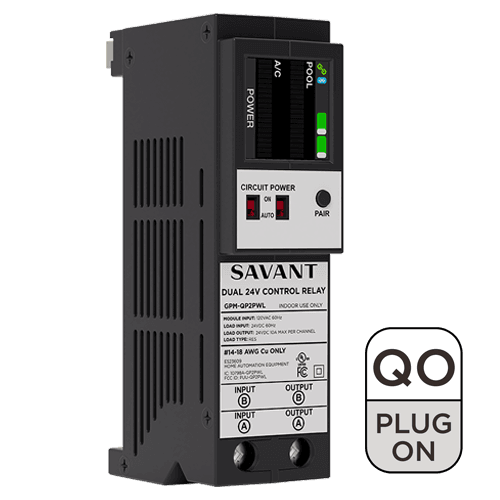

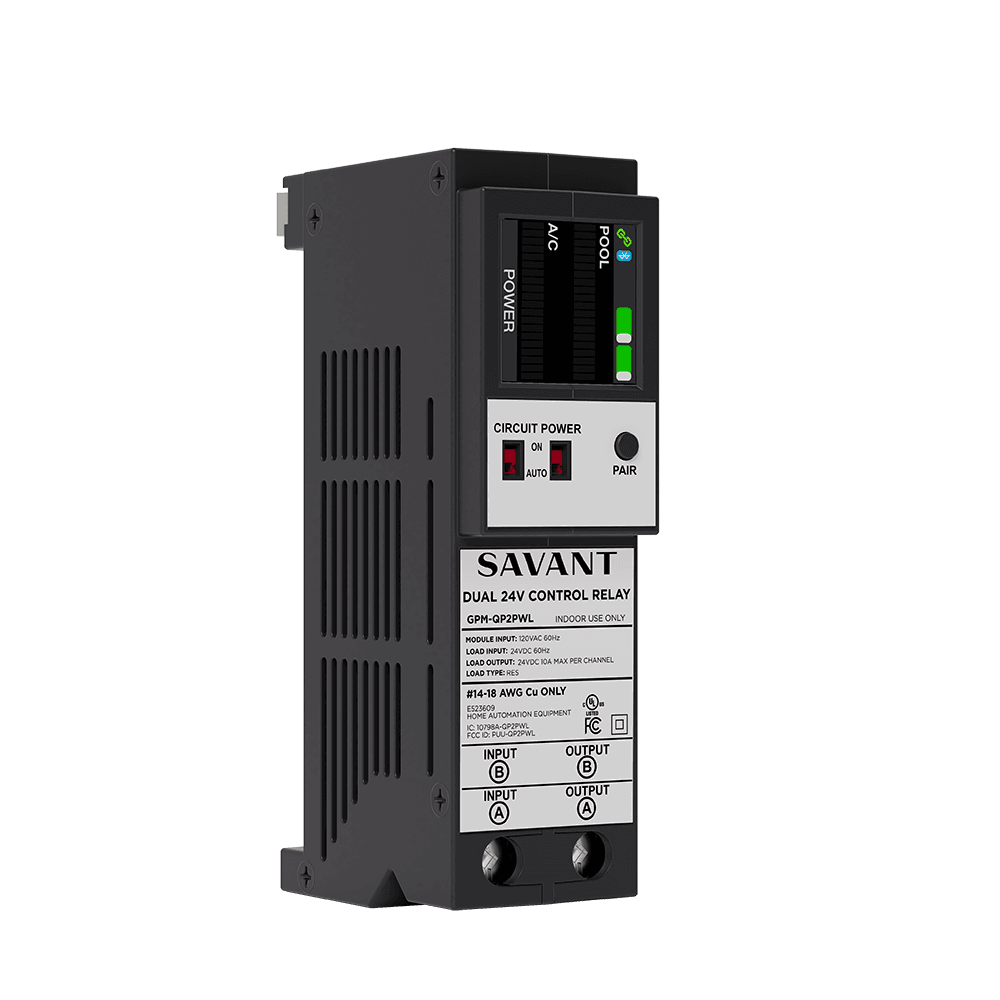

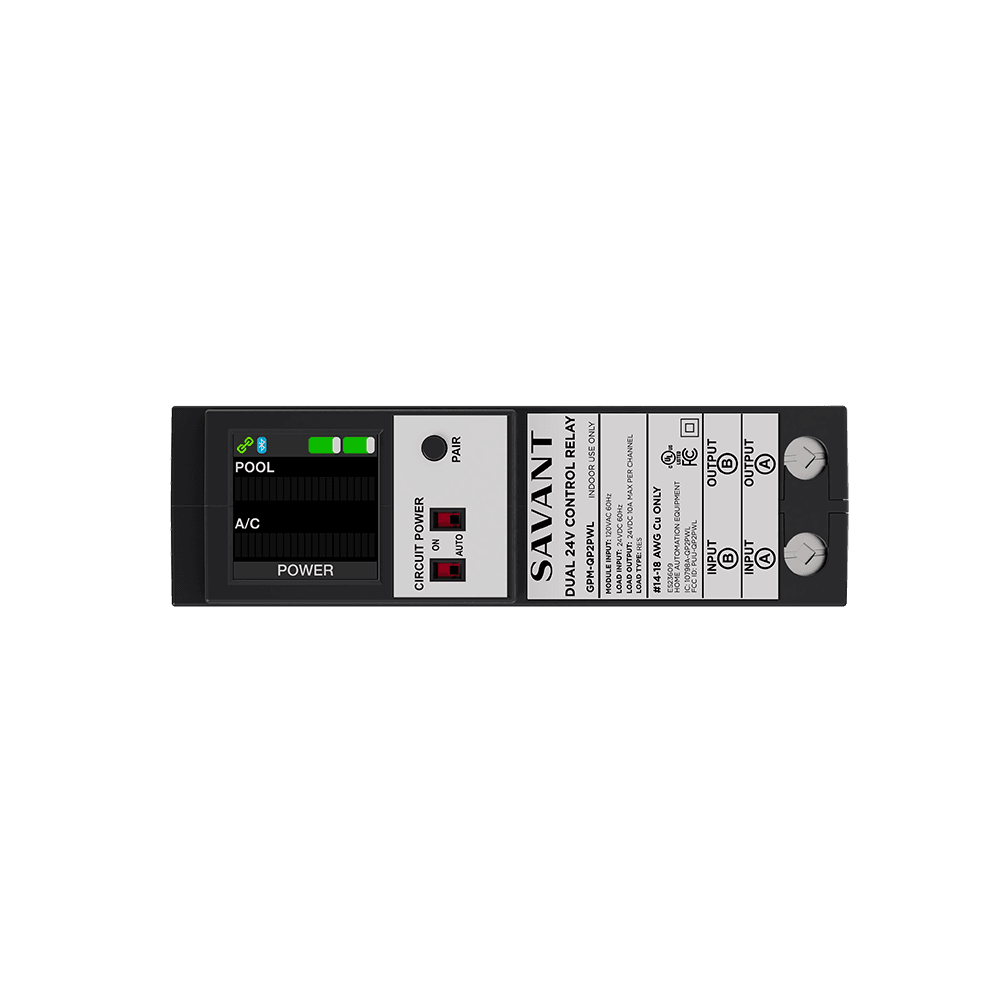

Savant Power Dual 24V DC Control Relay Companion Module – QO™ compatible, with plug-on neutral.
KEY FEATURES
- Works with 3/4 inch Schneider/Electric Square D™ QO™ plug-on neutral load centers.
- Supported for use with Savant Power Systems or as part of a larger Savant Pro system.
- Compatible with Savant Power Director and/or Savant Panel Bridge Controller (PBC-1000), Savant Energy Monitor (SEM)
- Deployment and configuration via Savant Power and Light 2.0 App or through RacePoint Blueprint
- Dynamic remote management of loads - can switch on/off a Powerlink remotely controlled breaker.
- Communicates via Bluetooth Low Energy (BLE) technology
- Color LCD display for easy identification and load status
- Two switches positioned on front of module allow power to outputs A and B to be toggled manually
- Dual 24V DC Control Relay Module (GPM-QP2PWL-20) - QRG View
- Savant Power System Deployment Guide [RacePoint Blueprint] View
Basic warranty period is five (5) years excluding misuse defined as abuse, accidental damage, modifications, improper wiring, improper repair, incorrect repair, and operation outside specified operating temperatures and humidity. For further warranty information on this product please refer to the Savant New Product Limited Warranty document.
Learn more
SPECS
- Temperature: 32° to 104° F (0° to 40° C)
- Humidity: 5% to 85% Relative Humidity (non-condensing)
- Location: Indoor Use Only
- Length: 4.97 in. (12.63 cm); Shipping 7.50 in. (19.05 cm)
- Width: 1.48 in. (3.76 cm); Shipping 1.71 in. (4.34 cm)
- Height: 2.60 in. (6.61 cm); Shipping 4.30 in. (10.92 cm)
- Weight: .5 lbs (.23 kg); Shipping 1.0 lbs. (.45 kg)
- Input Power (powers the module): 120V AC (+/- 10%) @ 60 Hz, 0.1A max
- Input Power (voltage feed from a plug-on power supply): 24V DC / 10A max
- Load Power: 24V DC / 10A total (max - The 10 amps can be on one output or split between the two.)
- Features of Automatic Action: Type 1.B action
- Bluetooth 5 Low Energy (BLE)
- 2.4 GHz radio frequency
- Safety and Emissions: FCC Part 15, UL, ICES 003
- Contains FCC ID: 2AA9B10
- Contains IC: 12208A-10
- RoHS: Compliant
- Standard Configuration: 24V DC On/Off type loads
- Tighten Torque: 3.0 Nm
- Wire Type: Copper (Cu) only
- Pollution Degree: 2
- Purpose of Control: Operating Control
- da Vinci 10.1
Información adicional
| Peso | 0.45 kg |
|---|---|
| Dimensiones | 19.05 × 4.34 × 10.92 cm |
