SAVANT TOUCH 8 INCH CONTROL SCREEN – BLACK
Registrate para ver precios

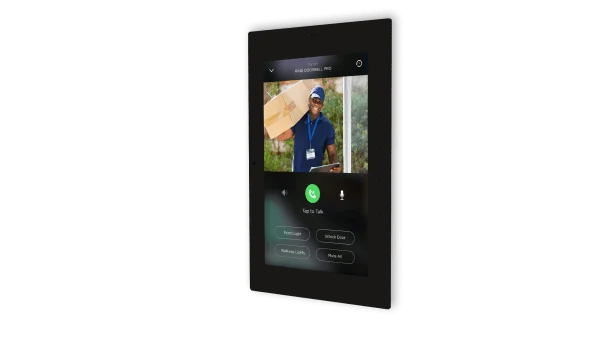

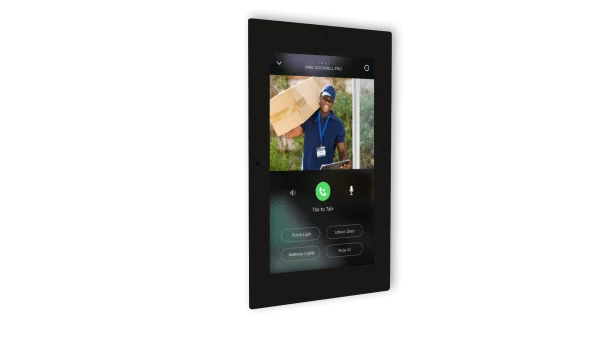

The Savant Touch 8 inch control screen delivers dedicated and elegant control with stunning, high resolution graphics. Control services throughout a home or facility, including audio, video, climate, security, pool/spa and much more. Activate scenes, view security cameras, or simply crank up the tunes, a Savant touch screen is perfect for high traffic areas where quick control is a must.
This enhanced version of the Savant Touch Control Screen includes a new high-powered processor (upgraded DSP chip) for greater responsiveness with large systems, plus an all-new noise cancelling microphone for door entry and communication applications.
- Black bezel
- 8” touch screen, mounts in a double gang
- Compatible with new or retrofit installations with Power over Ethernet (PoE) connectivity
- Wake up screen configurable to a specific room or service
- Presence sensor to wake the touch screen when a person approaches
- Works with Blueprint - does not require a config upload but users can be added in Blueprint for room restrictions
- Mountable in portrait or landscape mode
- Embedded Microphone and Speaker - now with improved noise-cancelling mic
- Upgraded DSP processor for enhanced responsiveness
- Can be flush mounted using available WallSmart flush mount kits
Basic warranty period is two (2) years excluding misuse defined as abuse, accidental damage, modifications, improper wiring, improper repair, incorrect repair, and operation outside specified operating temperatures and humidity. For further warranty information on this product please refer to the Savant New Product Limited Warranty document.
Learn more
Environmental
- Temperature: 32° to 104° F (0° to 40° C)
- Humidity: 10% to 90% RH (non-condensing)
Dimensions
- Height: 8.80 in / 22.35 cm
- Width: 5.84 in / 14.84 cm
- Depth: (overall) 1.43 in / 3.63 cm
- Depth: (mounting) .62 in / 1.58 cm
- Weight (display only): 0.95 lbs / 0.44 kg
Screen
- Viewing Image (IPS) 8.0 in / 20.3 cm
- Resolution 1280 x 800 | 16.7M colors
Packaging with contents
- Weight: 1.85 lbs / 0.83 kg
Power
- Input Power: PoE 802.3at compliant
Compliance
- Safety & Emissions: FCC Part 15B | CE Mark | UKCA | WEEE
- RoHS Compliant
Minimum Supported Requirements
- Release: Savant OS: da Vinci 10.1.1
- Hardware: Requires pairing with a Savant Host
Información adicional
| Peso | 0.83 kg |
|---|---|
| Dimensiones | 7.62 × 29.84 × 29.21 cm |
| Marca |
