• Dimensions: 1RU - 1.75” H x 19.0” W x 13.0” D, Overall with Rack Ears (included)
• Power Output: 1,000 Watts RMS for even the most demanding systems
• The RCC1000-SA is designed with preset DSP equalization for a flat frequency response when used with the RCC In-Wall Series subwoofers

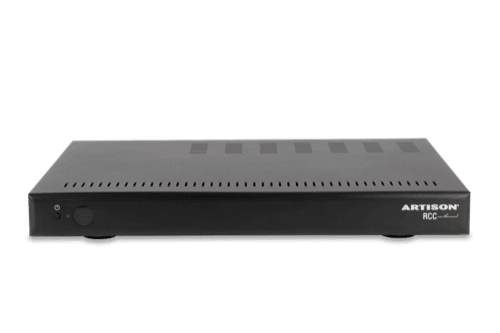

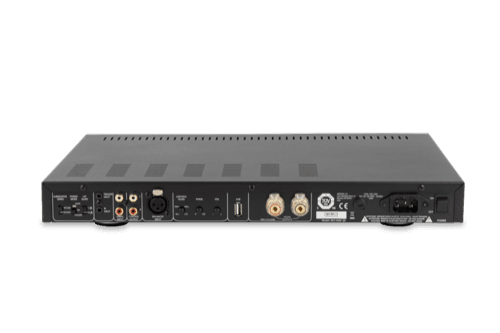

• Machined minimalist aluminum front panel with setup adjustments on rear panel
• Balanced input and RCA inputs with cascade output for multiple amplifiers
• Multiple adjustments allow you to fine tune the system
• Large gold plated binding terminals for a secure connection
• Weight: 14.5lbs / 6.6kg
• Frequency Response: 20 Hz – 200 Hz ± 3 dB

Inputs:

• 1 ea. Balanced XLR
• 1 pr. Unbalanced RCA L/R

Outputs:

• 1 Channel Speaker Level
• 1 pr. Unbalanced RCA L/R

Compatible Speakers:

• (4 pairs) RCC160-MK2-PC, paralleled on output
• (4) RCC320-MK2-PC or RCC320-MK2-R, paralleled on output
• (2) RCC320-R or RCC320-PC, paralleled on output
• (1) RCC640-R or RCC640-PC

• LPF Crossover: 40 – 160 Hz, LFE
• Phase Control: 0 – 180°
• Cabinet / Finish: Extruded Aluminum / Black Brushed Anodized Steel / Black Powdercoat
• Control: IR Remote Control, IR Rx on front panel, IR Input on rear panel
• Voltage: 110 – 230 AC Volts, Auto-Sensing Universal Supply
