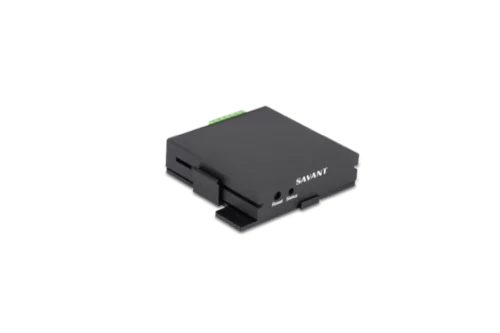

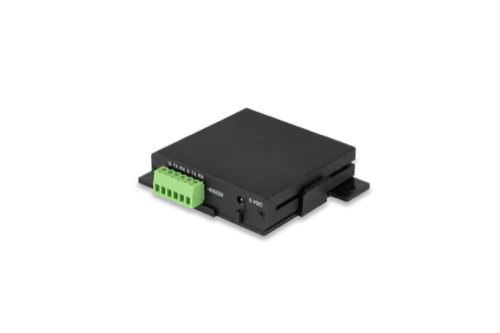

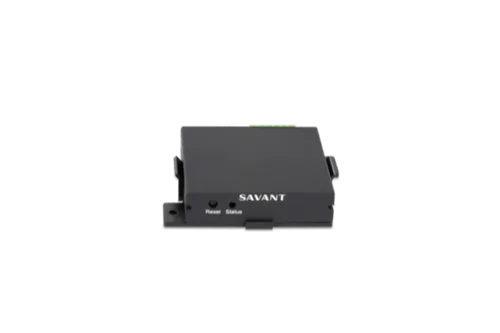

SAVANT SMARTCONTROL RS232 – WI-FI SMART CONTROLLER WITH 2 RS232
SSC-W02R-00
Registrate para ver precios
The SmartControl 2 features 2 Serial control ports. In combination with other Savant SmartControl products, it provides the flexibility and scalability needed to meet the needs of any job.
- 2 RS232 control ports
- Wi-Fi (802.11 b/g/n 2.4 GHz)
- Ultra-compact, surface mount design
DOCUMENTS
Basic warranty period is two (2) years excluding misuse defined as abuse, accidental damage, modifications, improper wiring, improper repair, incorrect repair, and operation outside specified operating temperatures and humidity. For further warranty information on this product please refer to the Savant New Product Limited Warranty document.
Learn more
SPECS
- (1) SmartControl 2 Serial Controller (SSC-W02R-00)
- (1) Mounting Plate
- (1) 6-pin Screw Down Plug-in Connector
- (1) 5V DC 1.2A Power Supply
- (1) Cable Tie
- (1) Product Regulatory Insert
- Temperature 32° to 104° F (0° to 40° C)
- Humidity 10% to 90% RH (non-condensing)
- Height 0.64 in (1.62 cm)
- Width 2.70 in (6.85 cm)
- Depth 2.67 in (6.78 cm)
- Net Weight: 0.50 lb (0.22 kg)
- Shipping Weight: 2.00 lb (0.90 kg)
- Input Power 5V DC 1.2A
- Max Power 6 watts
- Wireless Wi-Fi (802.11 b/g/n 2.4 GHz)
- Bluetooth Low Energy
- Safety and Emissions FCC Part 15 | CE Mark | C-Tick | UKCA
- RoHS Compliant
- Savant OS da Vinci 8.2
Información adicional
| Peso | 0.90 kg |
|---|---|
| Dimensiones | 25.40 × 17.78 × 7.62 cm |
| Marca |
