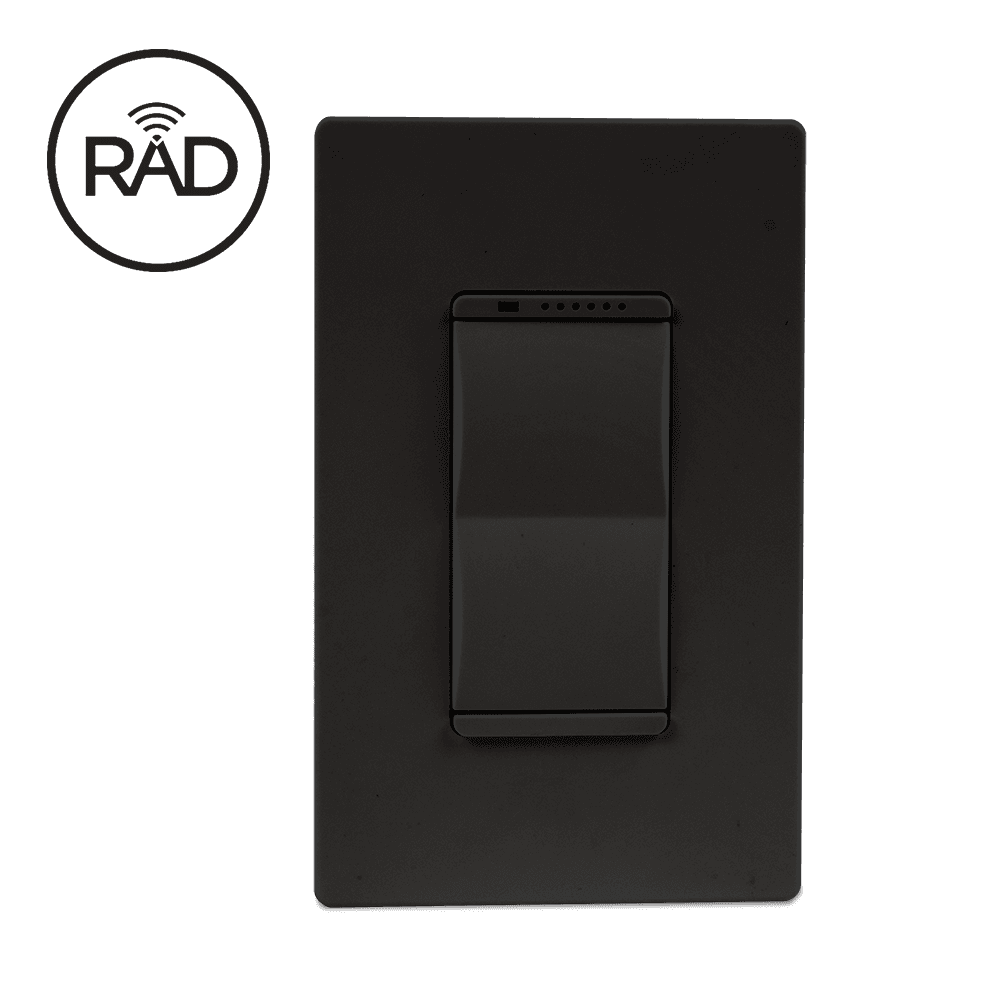

ECHO WIRELESS SWITCH V2 (BLACK)
Registrate para ver precios
The Savant Echo Wireless Switch is designed to replace traditional switches with intuitive, multi-button scene control. Buttons on the switch can be programmed to activate Scenes including lighting, shades, climate, AV and other services. Supports 5 GHz and 2.4 GHz Wi-Fi bands. New Roaming Assisted Discovery (RAD) allows multiple keypads to be provisioned to the local network. Simply provision one keypad, enable RAD, then join the other keypads to the network with the push of a button. Faceplates sold separately.
- Ambient Light Sensor - Detects the level of ambient light in the room and adjusts the LED brightness on the front panel
- Works with the auxiliary control for wired 3-way applications
- Fits standard decorator-style wall plates
- Communicates with an 802.11 b/g/n wireless network
- Supports 5 GHz and 2.4 GHz Wi-Fi bands
- Roaming Assisted Discovery (RAD) - Makes provisioning keypads faster, and more efficient
- Simple to configure and deploy using Blueprint Lighting & Shades Device Manager
Basic warranty period is two (2) years excluding misuse defined as abuse, accidental damage, modifications, improper wiring, improper repair, incorrect repair, and operation outside specified operating temperatures and humidity. For further warranty information on this product please refer to the Savant New Product Limited Warranty document.
Learn More
Environmental
- Temperature 32° to 104° F (0° to 40° C)
- Humidity 10% to 90% Relative Humidity (non-condensing)
- Indoor Use Only
Dimensions
- Height - 4.13in (10.50cm) Shipping 7.0in (17.78cm)
- Width - 2.36in (6.00cm) Shipping 4.5in (11.43cm)
- Depth - 1.57in (3.99cm)
- Shipping - 3.0in (7.62cm)
- Weight Shipping - 0.60lb (0.272kg)
Power
- Input 120V AC at 60 Hz
- Power: Load (Max) 600W 5A @ 120V AC (See Derating Table)
- Rated Impulse Voltage 2500V
Standards
- Wireless 802.11 b/g/n (2.4GHz only)
- Security WPA™, WPA2™, WPA1™ +WPA2™, WEP
Minimum Supported Release: da Vinci 10.4
NOTE: Not supported as a BLE Gateway.
Información adicional
| Peso | 0.272 kg |
|---|---|
| Dimensiones | 17.78 × 11.43 × 3.99 cm |
