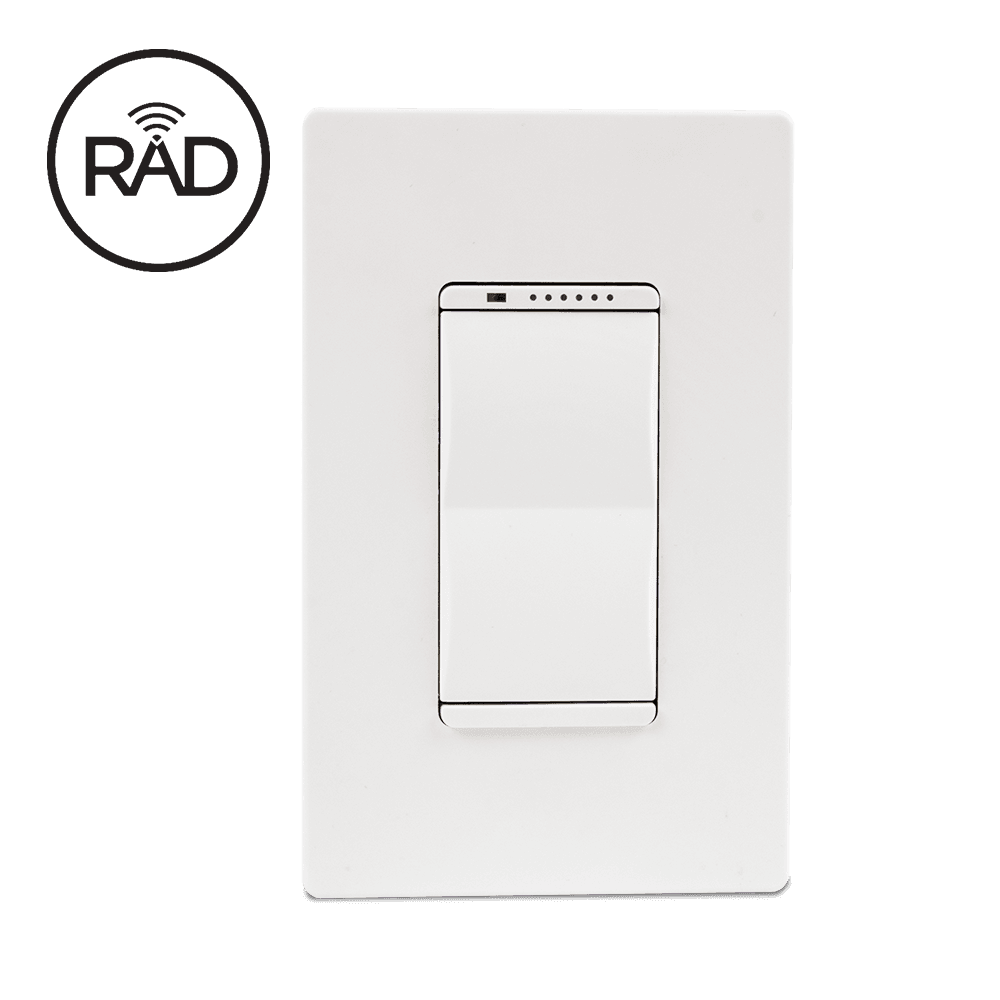

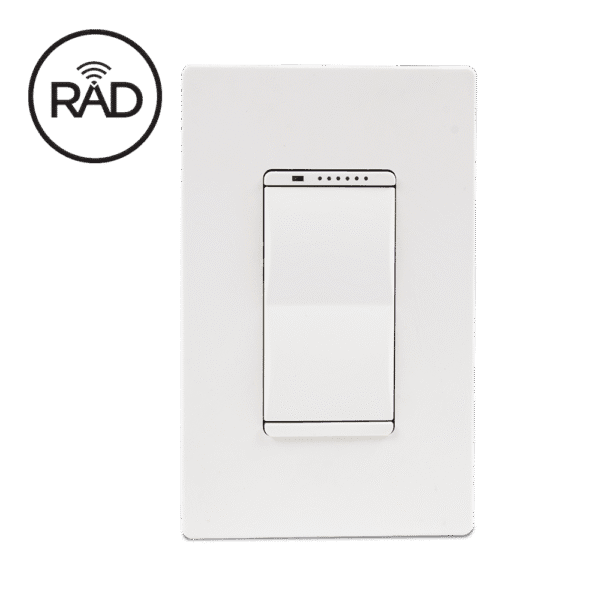

ECHO WIRELESS FORWARD PHASE & MLV DIMMER V2 (SNOW WHITE)

WPD-SWT102V2-00

Registrate para ver precios

The Savant Echo Wireless Forward Phase and MLV Dimmer is designed to replace traditional dimmers with intuitive, multi-button Scene control. Buttons on the Forward Phase and MLV Dimmer can be programmed to activate Scenes including lighting, shades, climate, AV and other services. Supports 5 GHz and 2.4 GHz Wi-Fi bands. New Roaming Assisted Discovery (RAD) allows multiple keypads to be provisioned to the local network. Simply provision one keypad, enable RAD, then join the other keypads to the network with the push of a button. Faceplates sold separately.

KEY FEATURES

  • Ambient Light Sensor - Detects the level of ambient light in the room and adjusts the LED brightness on the front panel
  • Works with the auxiliary control for wired 3-way applications
  • Communicates with an 802.11 b/g/n wireless network
  • Supports 5 GHz and 2.4 GHz Wi-Fi bands
  • Fits standard decorator-style wall plates
  • Roaming Assisted Discovery (RAD) - Makes provisioning keypads faster, and more efficient.
  • Simple to configure and deploy using Blueprint Lighting & Shades Device Manager
  • Echo and Metropolitan Wireless Configurable Keypads and Dimmers (V2) -QRG View
  • Echo and Metropolitan Wireless Keypad Switch (V2) - QRG View



WARRANTY

Basic warranty period is two (2) years excluding misuse defined as abuse, accidental damage, modifications, improper wiring, improper repair, incorrect repair, and operation outside specified operating temperatures and humidity. For further warranty information on this product please refer to the Savant New Product Limited Warranty document.

Learn More

Environmental

  • Temperature - 32° to 104° F (0° to 40° C)
  • Humidity - 10% to 90% Relative Humidity (non-condensing)

Dimensions

  • Height - 4.13in (10.50cm) Shipping 7.0in (17.78cm)
  • Width - 2.36in (6.00cm) Shipping 4.5in (11.43cm)
  • Depth - 1.80in (4.60cm) Shipping 3.0in (7.62cm)
  • Weight - Shipping 0.60lb (0.272kg)

Power

  • Input - 120V AC at 60 Hz
  • Power:Load (Max) - 550W 5A @ 120V AC (See Derating Table)
  • Rated Impulse Voltage - 2500V

Minimum Supported Release: da Vinci 10.4

NOTE: Not supported as a BLE Gateway.

Información adicional

Peso0.272 kg
Dimensiones17.78 × 11.43 × 7.62 cm
